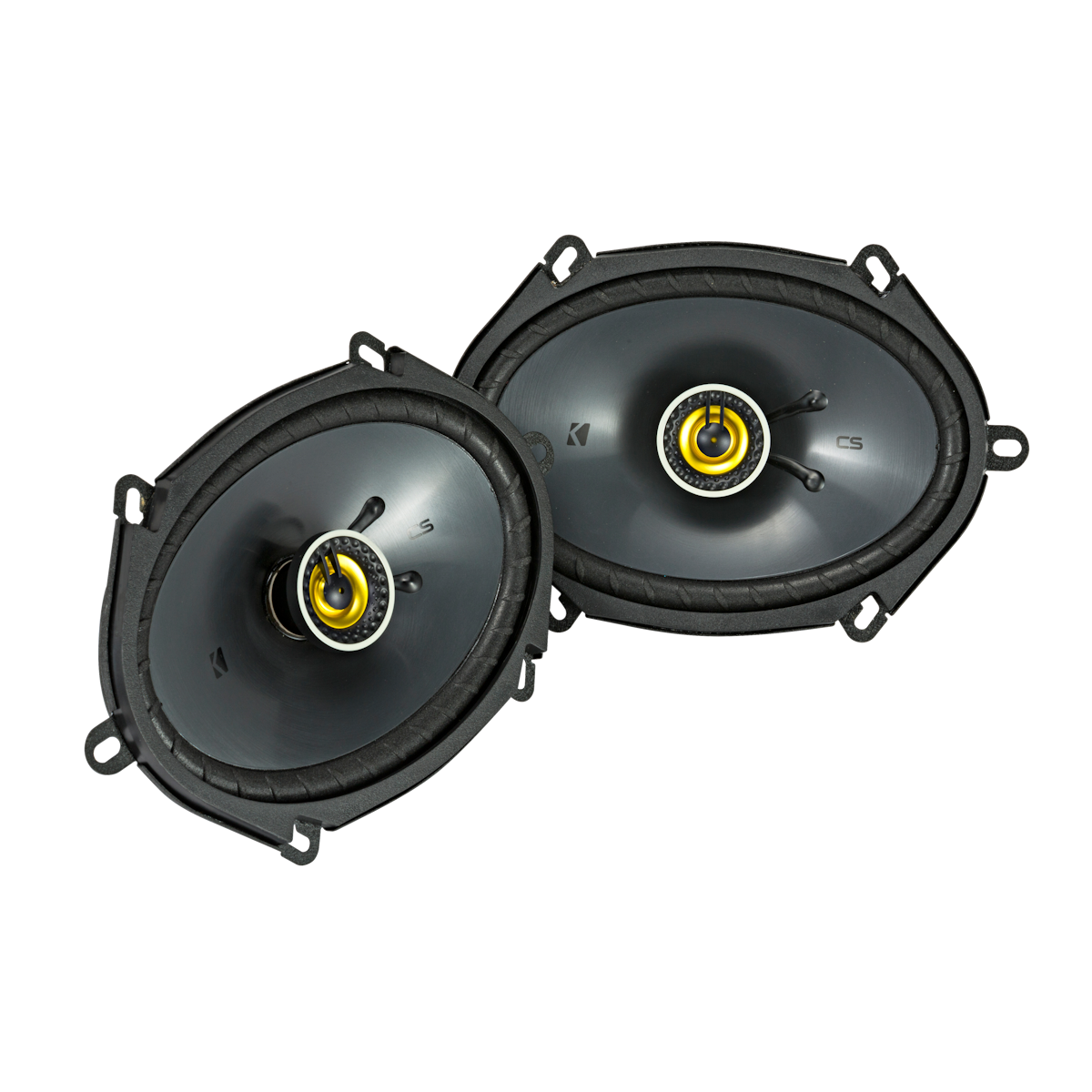

Kicker CS-Series 5×7″ 2way Coaxial Speakers – 46CSC684

$149.00

– Peak Power: 225 Watts
– RMS Power: 75 Watts
– 56mm Mounting Depth

2 in stock

SKU: 46CSC684 Category:

Description

Kicker CS-Series 5×7″ 2way Coaxial Speakers – 46CSC684

CS-Series 6×8-inch Coaxial Speakers are the perfect way to upgrade your factory system.

CS-Series Coaxials deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not found in stock speakers. A stamped-steel frame supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.

These CS speakers work best with 75 watts of recommended power. See below for more details.

Fits nearly every car made
Zero-protrusion tweeters to fit nearly any factory depth
Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
UV-treated poly-foam surround resists heat or direct sunlight
Large woofer magnet in a heavy-duty motor for ultra-clean bass
PEI-tweeter construction provides superb clarity
Neodymium tweeter magnets allow for increased volume in high frequencies

Specifications:

  • 2-way Speaker Design
  • Woofer Size | in [mm]
    6×8 [160×200]
  • Tweeter Size | in [mm]
    1/2 [13]
  • DC Resistance | ohm
    3.5
  • Peak Power | Watts
    225
  • Continuous Power | Watts, RMS
    75
  • Sensitivity [SPLo] | dB @ 1W, 1m
    90
  • Effective Frequency Range | Hz
    45-20k
  • Mounting Hole Diameter | in [mm]
    5 x 7 3/16 [126×182]
  • Top Mount Depth | in [mm]
    3/8 [9]
  • Bottom Mount Depth | in [mm]
    2 3/16 [56]
  • Tweeter Protrusion | in [mm]
    0
  • Grilles
    No
  • Tweeter Magnet Material
    Neodymium
  • Tweeter Dome MateriaL
    PEI [polyether imide]
  • Tweeter Design
    Balanced dome
  • Woofer Cone Material
    Polypropylene
  • Woofer Surround Material
    Polyester foam
