Description

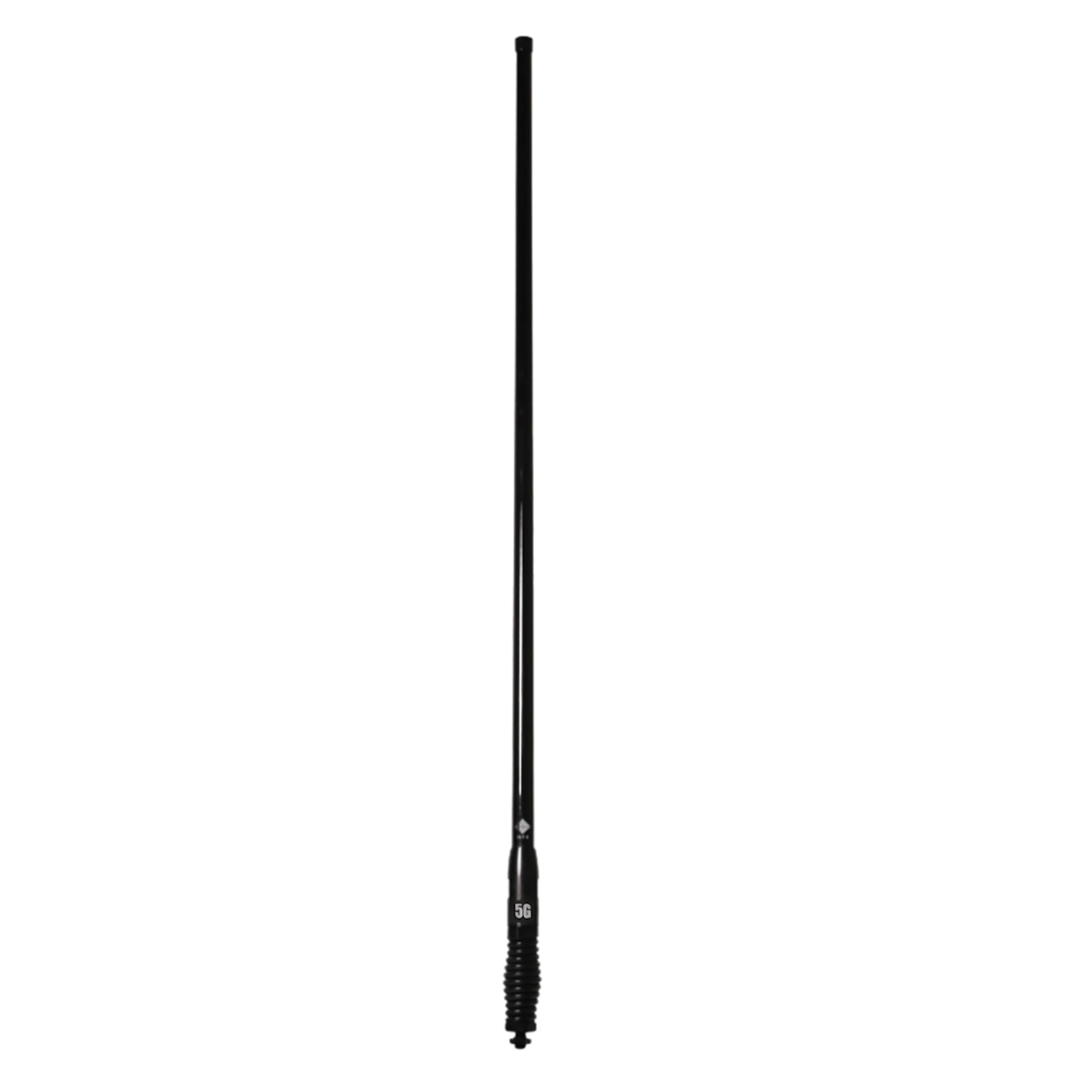

RFI CD8195-B – 920mm Collinear Antenna Multi-band Cellular Antenna (6.5dBi)
The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).
It is ideal for use with cellular modems & active repeaters, especially when signal is poor.
The outstanding performance of the CD8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
Features:
- Patented PCB-based collinear design offering the ultimate in pattern and gaining stability
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Frequency Range – 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
- Nominal Gain – 6.5 / 4.5 / 6 / 6.5 dBi
- 3G/4G/5G
- Omni-Directional
- Spring Base Fibreglass whip
- Fixed Whip and Base
- Ground Independent
- Pre-terminated SMA connector
- Coax Cable Length – 5m
- Antenna Length: 920mm
- Made in Australia
