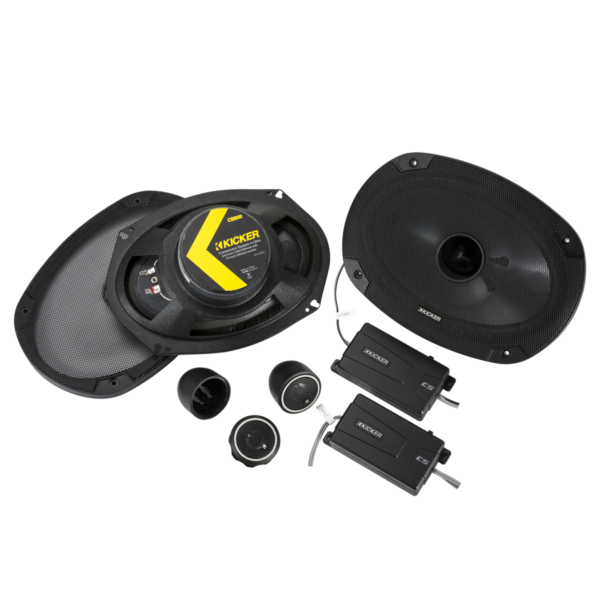

Kicker CS-Series 6×9-inch Component Speakers – 46CSS694
CS-Series 6×9-inch Component Speakers are built for awesome sound that plays as long as the ride takes you.
CS-Series components include titanium tweeters and two-way crossovers with a smooth 12dB slope and three-position tweeter adjustment switch (0dB/+3dB/+6dB), included in each external crossover. The optimized footprint means great sound with hassle-free installation, no matter where you mount it!
These CS speakers work best with 150 watts of recommended power. See below for more details.
Fits nearly every car made
12dB crossovers with a smaller footprint for easier installation
Three-position tweeter switch for dialing in your highs
EVC™ (Extended Voice Coil) technology help deliver remarkable bass response
Titanium tweeter construction and neodymium magnets to reveal subtle details
UV-treated poly-foam surround assists with precise linear excursion
Phase plugs in the woofer cones eliminate any distortion
Steel mesh grilles protect your drivers
Three tweeter mounting options including flush, angled and surface pods
Specifications:
- Woofer Size | in [mm]
6×9 [160×230] - Tweeter Size | in [mm]
3/4 [20] - Dome Material
Titanium - Peak Power | Watts
450 - Continuous Power | Watts, RMS
150 - Effective Frequency Range | Hz
30-21k - Mounting Hole Diameter | in [mm]
5 5/8 x 8 7/16 [143×215] - Bottom Mount Depth | in [mm]
3 3/16 [81] - Flush Mounting Tweeter Hole Diameter | in [mm]
1 9/16 [40] - Flush Mount Tweeter Depth | in [mm]
9/16 [14.5] - Grilles
Yes - High Pass | dB, at Frequency | Hz
12, 4000 - Low Pass | dB, at Frequency | Hz
12, 4000 - High Frequency Output Attenuation | dB
0, 3, & 6
