Description

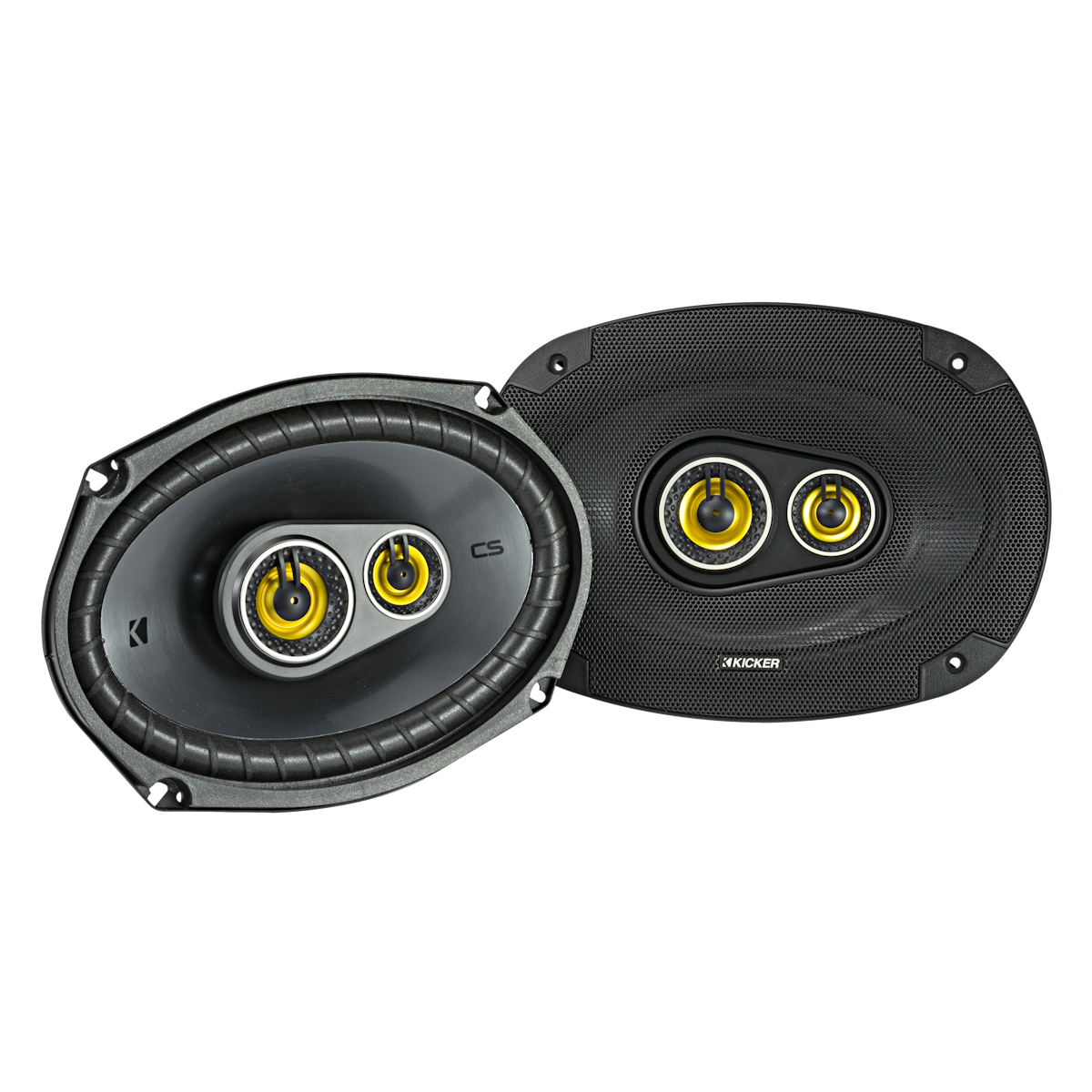

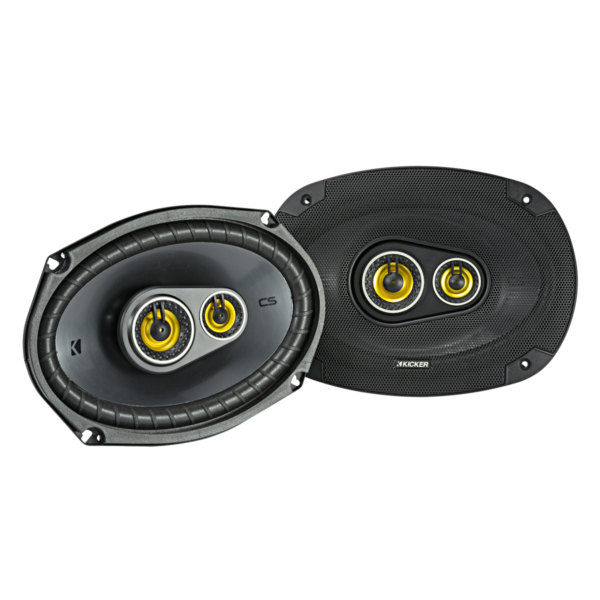

Kicker CS-Series 6×9″ 3-way Coaxial Speakers – 46CSC6934
CS-Series 6×9-inch 3-Way Speakers are the perfect way to upgrade your factory system.
CS-Series 3-Ways deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not found in stock speakers. A stamped-steel frame supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.
The rugged 6×9-inch, 3-way speaker is especially cool. With a massive 450-watt peak power rating, this triaxial driver gives you extraordinary volume, while the integrated 2-inch midrange driver and dedicated tweeter give you crisp, accurate details for the realism you crave.
These CS speakers work best with 150 watts of recommended power. See below for more details.
Fits nearly every car made
Zero-protrusion tweeters to fit nearly any factory depth
Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
UV-treated poly-foam surround resists heat or direct sunlight
Large woofer magnet in a heavy-duty motor for ultra-clean bass
Integrated 2-inch (50mm) midrange drivers gives detailed attention to mid frequencies
PEI-tweeter construction provides superb clarity
Neodymium tweeter magnets allow for increased volume in high frequencies
Steel mesh grilles included for speaker protection
Specifications:
- 3-way Speaker Design
- Woofer Size | in [mm]
6×9 [160×230] - Mid Size | in [mm]
2 [50] - Tweeter Size | in [mm]
1/2 [13] - DC Resistance | ohm
3.5 - Peak Power | Watts
450 - Continuous Power | Watts, RMS
150 - Sensitivity [SPLo] | dB @ 1W, 1m
92 - Effective Frequency Range | Hz
30-20k - Mounting Hole Diameter | in [mm]
5 5/8 x 8 7/16 [143×215] - Top Mount Depth | in [mm]
7/16 [12] - Bottom Mount Depth | in [mm]
3 3/16 [81] - Tweeter Protrusion | in [mm]
1/16 [1] - Grilles
Yes - Tweeter Magnet Material
Electric Crystal Motor - Tweeter Dome MateriaL
PEI [polyether imide] - Tweeter Design
Balanced dome - Woofer Cone Material
Polypropylene - Woofer Surround Material
Polyester foam
