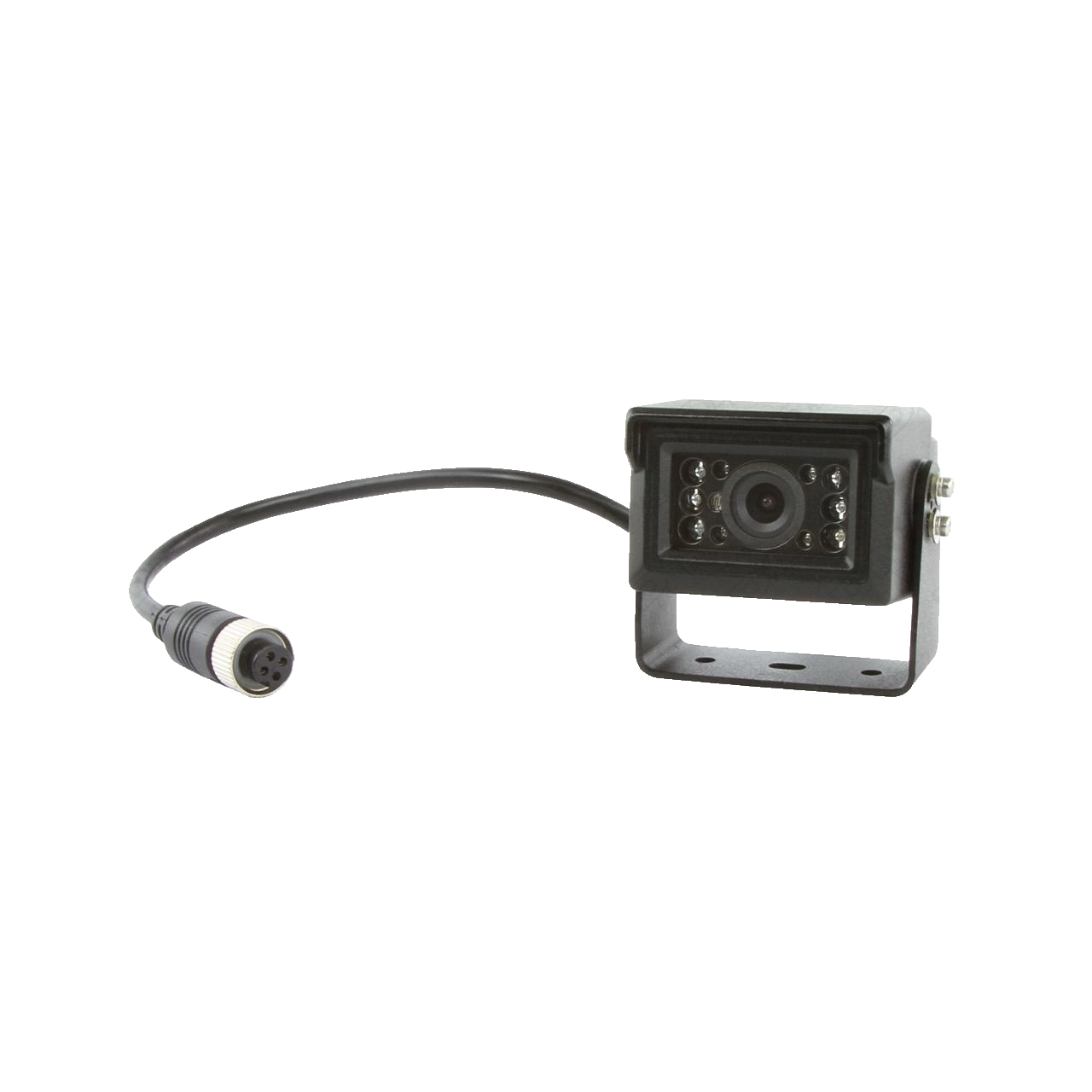

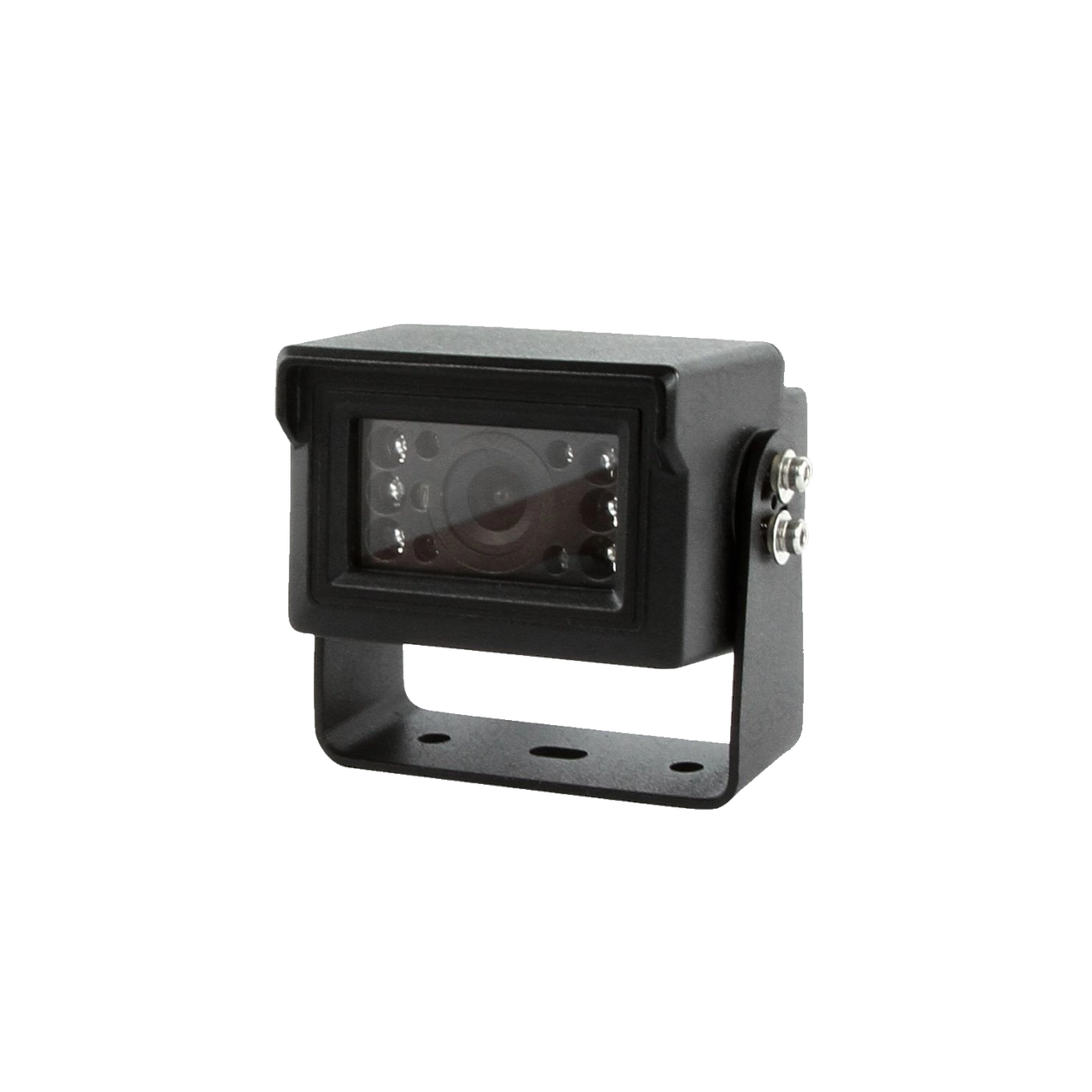

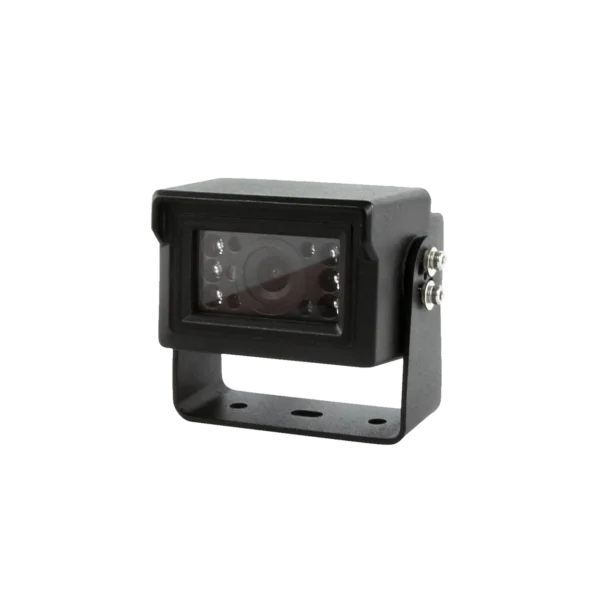

DNA Heavy Duty Compact 120º CCD Box Camera (4Pin)
DNA Heavy Duty Compact 120º CCD Box Camera (4Pin) - Image 2

DNA Heavy Duty Compact 120º CCD Box Camera (4Pin)

$149.00

DNA Heavy Duty Compact CCD Box Camera

– 120 Degree view angle
– Adjustable Mounting Bracket
– Water Resistant IP69k
– 4Pin Video/Audio connection
* Voltage 12 Volts Operation

1 in stock

SKU: RV103N Category:

Description

DNA Heavy Duty Compact 120º CCD Box Camera

This all metal waterproof construction CCD camera is ideal for trucks or buses where heavy duty application is required.
Designed with a compact footprint casing, and operates on 12V or 24V vehicles and includes built in IR LEDs for excellent night visibility and microphone for extra safety.

The use of an extension cable (depending on how far away the camera is from the screen) may be required and 5m, 10m or 20m are available separately. New trailer installation cable kits are available separately in single and dual inputs with 4 pin connectors.

  • 1/3 Inch Sharp NTSC CCD Image processor
  • 120° Horizontal Viewing angle
  • Horizontal Resolution: 600TV Line
  • IR LEDS: 10 IR Led
  • 0.05 LUX illumination (night mode)
  • Operating Voltage: 12V DC
  • Sun Visor Built Into Casing
  • Microphone Included
  • Material: Aluminium alloy shell
  • S/N ratio: >48db
  • Waterproof rating to IP69K
  • Video output: 1Vp-p 75 ohm composite
  • Supplied with 0.6m 4pin water resistant lockable connector
  • Dimensions (Camera Only): 55mm W x 40mm H x 49mm D
  • Dimensions (Camera & Bracket): 68mm W x 57mm H x 49mm D
