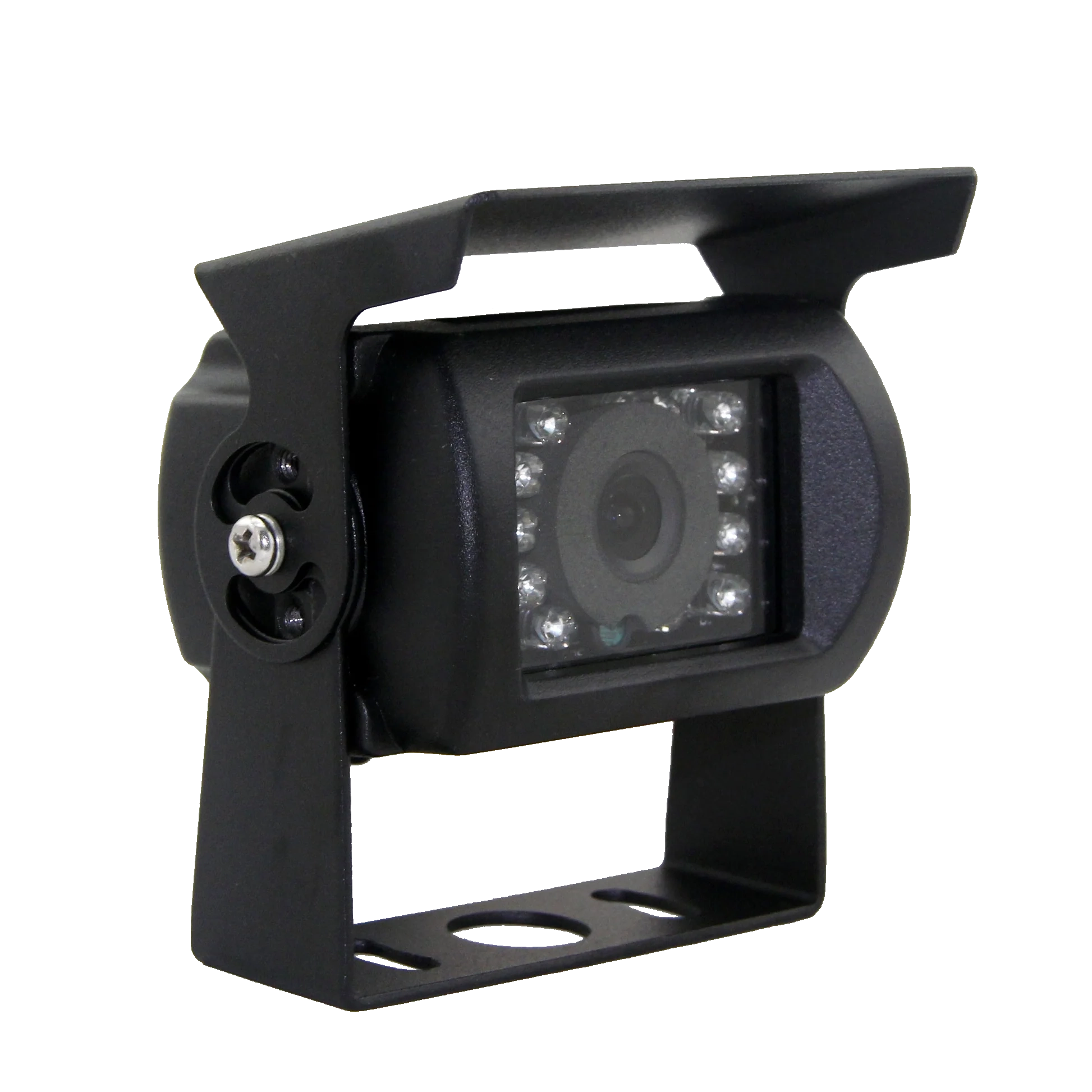

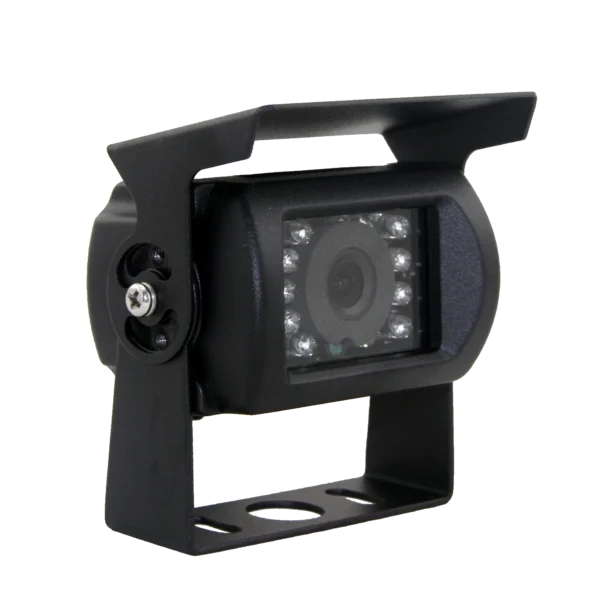

Command Heavy Duty 120º CCD Box Camera (91CMDC220)
The Command Parking Systems™ range of heavy duty reversing systems offers versatility with a selection of robust multi volt screens and high quality CMOS and CCD infra-red cameras at affordable prices.
This all metal waterproof construction CCD camera is ideal for trucks or buses where heavy duty application is required and includes built in IR LEDs for excellent night visibility and microphone for extra safety.
Command Heavy Duty systems come with 4 pin aviation style connectors for a strong, reliable and direct connection to create a user friendly plug and play system that can be upgraded, modified or even removed and re-fitted with ease.
Connections carry both video signal and power to be directly connected to Command heavy duty/commercial monitors. If connecting to a Passenger Vehicle range screen, a 91ADKIT adaptor will be required. The lead from the camera also comes complete with grommet already fitted for a professional installation. The range of Command Heavy Duty cameras run high quality CMOS and sharp CCD image processors with automatic light sensitive infra-red LED’s for superior image quality even in low or no light situations.
The use of an extension cable (depending on how far away the camera is from the screen) may be required and 5m, 10m or 20m are available separately. New trailer installation cable kits are available separately in single and dual inputs with 4 pin connectors.
- Image sensor 1/3“ Sony CCD
- Signal type: NTSC
- Resolution (TVL) 700 TVL Pixel 976 x 494
- Pixel 976 x 494
- Viewing angle 120 deg
- Infrared Yes – auto activation
- Min Illumination 0.1 Lux day, 0 Lux with IR
- Ingress protection IP69K
- Connector type Large 4 pin
- Mounting Type Adjustable steel bracket mount
- Sun Visor Included
- Power Supply 9 – 16 volt
- Dimensions 68mm (W) x 43mm (H) x 58mm (D), 45mm pivot base.
