Description

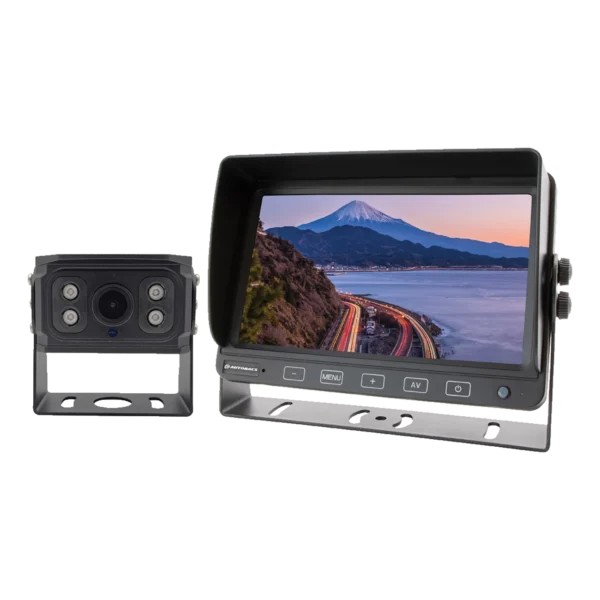

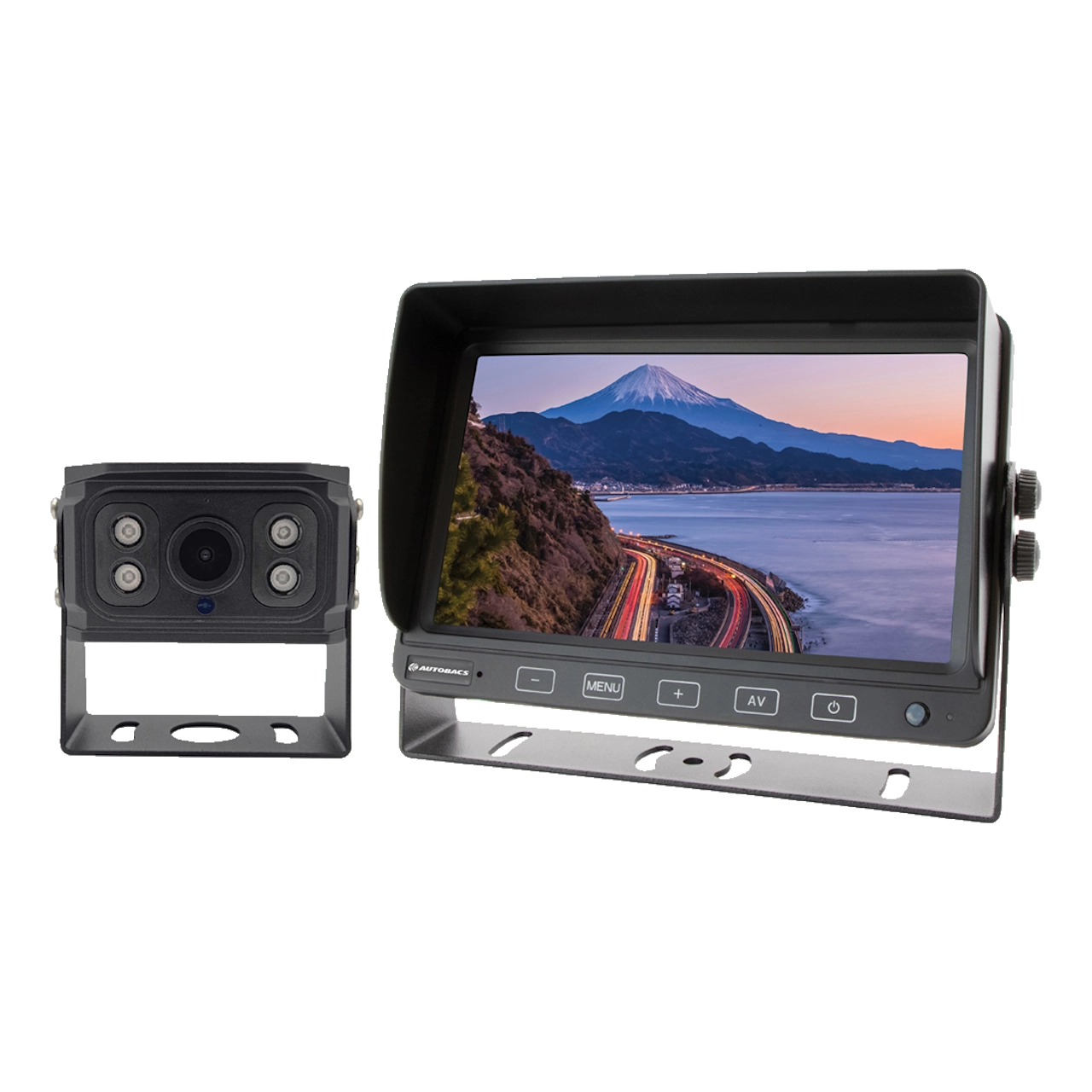

Autobacs 7″ High Res Reversing Camera & screen kit (HD7130K)
A High Resolution 12/24V monitor kit that offers a clear image and enhanced view when reversing. Its Heavy-Duty construction makes it suitable for Caravans, trucks, machinery and vehicles. The HD7130K also has the added flexibility of connecting up to 3 cameras. (1 camera included)
7” Monitor Specifications:
- TFT Panel: New Grade A LCD
- LCD Size: 7-Inch Diagonal
- Display Format: 16:9
- Resolution: (1024 x 600)
- Brightness: < 500 CD/M2
- Viewing Angles: 70° Left/Right/Up/Down
- Video System: Auto PAL/NTSC Select
- Video Connect: (3 x 4-Pin Male)
- Camera Triggers: (3 – CAM 1, CAM 2 & CAM3)
- Monitor View: Normal/Mirror/Flip/Mirror-Flip Image Select
- Buttons: Touch Sensitive
- Guidelines: Selectable On/Off
- Audio: Built-in
- Operating Temp: -20°C to +70°C
- Power Input: 10-32V DC (Negative Ground)
- Dimensions: (179W x 122H x 28Dmm excluding bracket)
- Operating Temp: -20°C ~ +60°C
Camera Specifications:
- Image Device: 1/3” IMX225LQR-C
- Diagonal Viewing Angle: 105°
- Horizontal Viewing Angle: 85°
- Signal System: PAL
- Effective Pixels: 1280H x 720V
- Resolution: 720p
- Sync System: Internal
- Orientation: Mirror Image
- Night Vision: 18 Infrared LED’s
- Illumination: 0.01 Lux with IR on
- Ingress Protection: IP68
- Integrated Microphone: Yes
- Operating Temp: -20 to 70° C
- Power Consumption: 3W, 250mA
- Dimensions: 98.3W x 67.7H x 68D mm (including Bracket)
- Connection: Terminated 4-Pin Female
- Power Supply: 12V DC
