Description

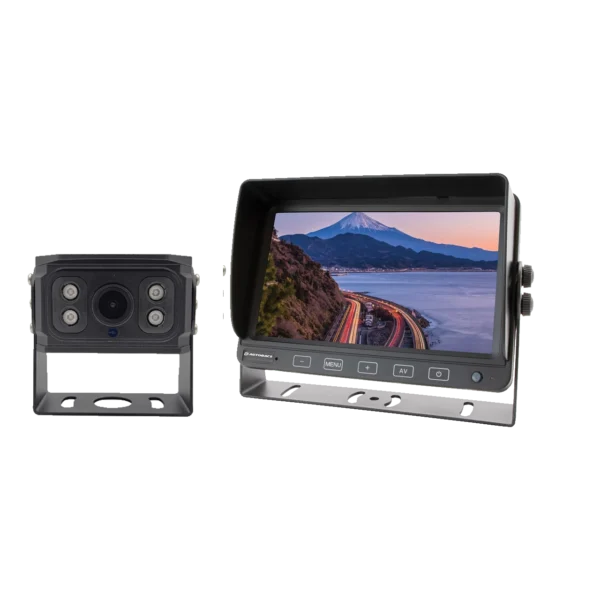

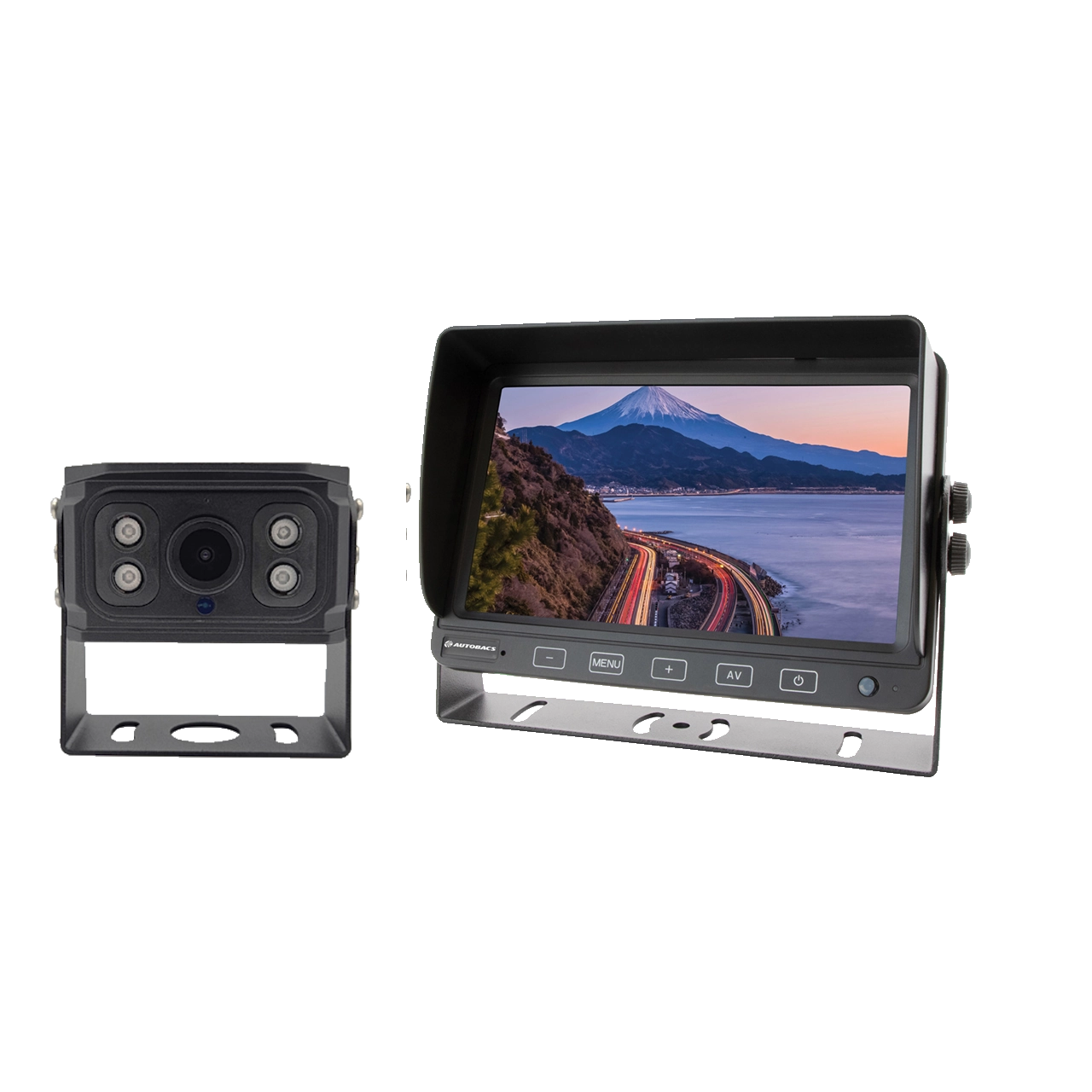

Autobacs 5″ High Res Reversing Camera & screen kit (HD5120K)
A High Resolution 12/24V monitor kit that offers a clear image and enhanced view when reversing. Its Heavy-Duty construction makes it suitable for trucks, machinery and vehicles. The HD5120K also has the added flexibility of connecting up to 2 cameras. (1 camera included)
5” Monitor Specifications:
- TFT Panel: New Grade A LCD
- LCD Size: 5-Inch Diagonal
- Display Format: 16:9
- Resolution: (1024 x 600)
- Brightness: < 500 CD/M2
- Viewing Angles: 70° Left/Right/Up/Down
- Video System: Auto PAL/NTSC Select
- Video Connect: (2 x 4-Pin Male)
- Compatibility: Standard & High Resolution Cameras
- Buttons: Touch Sensitive
- Connection Type: Universal Standard 4-Pin Configuration (M)
- Camera Triggers: 2
- Monitor View: Normal/Mirror/Flip/Mirror-Flip Image Select
- Guidelines: Selectable On/Off
- Audio: Internal Speaker
- Operating Temp: -20°C to +70°C
- Power Input: 10-32V DC (Negative Ground)
- Dimensions: 132.2W x 94.3H x 22.45D mm (Excluding bracket & Visor)
Camera Specifications:
- Image Device: 1/2.9” PV4209K
- Diagonal Viewing Angle: 120°
- Horizontal Viewing Angle: 103°
- Signal System: PAL
- Effective Pixels: 1920(H) x 1080(V)
- Resolution: 1080p
- Compatibility: High Resolution HD Series Monitors
- Sync System: Internal
- Orientation: Mirror Image
- Night Vision: 4 Infrared LED’s
- Illumination: 0.01 Lux with IR on
- Ingress Protection: IP68
- Integrated Microphone: Yes
- Operating Temp: -20 to 70° C
- Dimensions (Excl. Bracket): 77.2W x 48.2H x 65.2D mm
- Connection: Universal Standard 4-Pin Female
- Power Supply: 12V DC (9-16V)
- Power Consumption: <3W
- Max Current: <250mA
Includes:
Monitor
U-Shape Bracket & Gymbal Knobs
Sun Shade
Power/Camera/Trigger Harness
Heavy Duty Camera
15m Extension Lead
